the module transfers the load back and removes the start command. The generator should then begin it's shutdown procedure. The module can be configured so that they follow the users pre-set start and stop sequences.
·Automatic mains (utility) supply monitoring
·Load changeover control
·Protected solid state (PSS) outputs
·Front panel mounting
·Front panel programming
·Single/three phase mains sensing
·Transfer’s between mains and generator power
·On-site module configuration to match user requirements

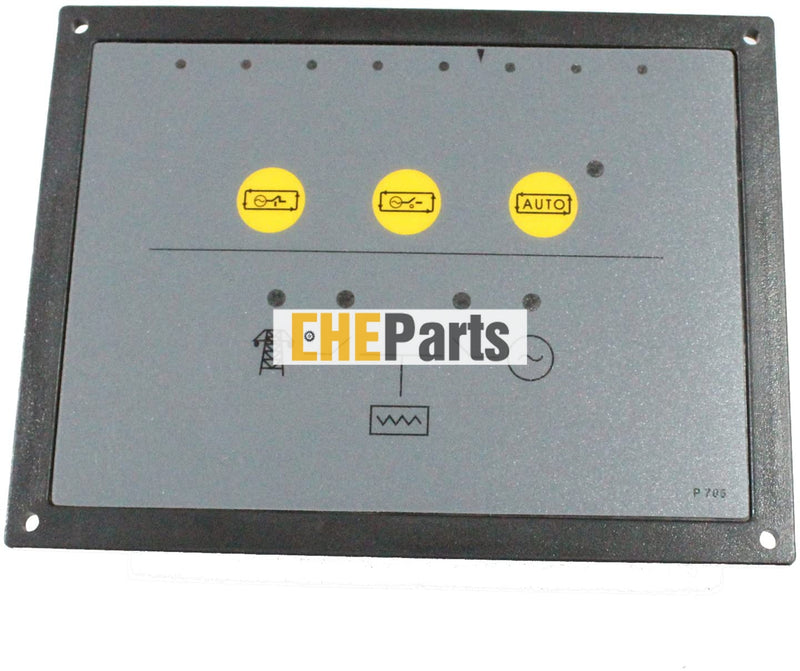

The module is operated by the three push-buttons on the front:
Manual Off Load –This is used to manually start and run the engine off load. Should the mains (utility) supply fail, then the load is transferred to the generator automatically.
Manual On Load - This mode is used to manually start and run the engine on load.
Auto Mode –This puts the module into automatic mode, where it will await a mains failure. Upon detection it will send a start request to the generator control unit.
